DNS protocol
Overview
DNS protocol classification and attribute extraction in MMT-DPI. The DNS parser
is implemented in src/mmt_tcpip/lib/protocols/proto_dns.c (1113+ lines) and
registered as PROTO_DNS in sdk/include/tcpip/mmt_tcpip_protocols.h.
DNS packets attributes

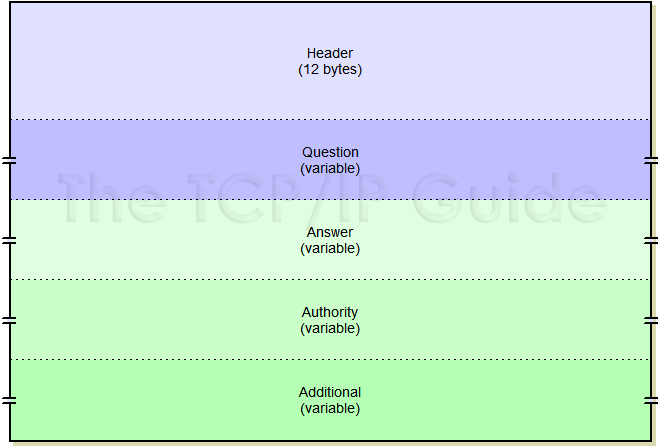

DNS General Message Format

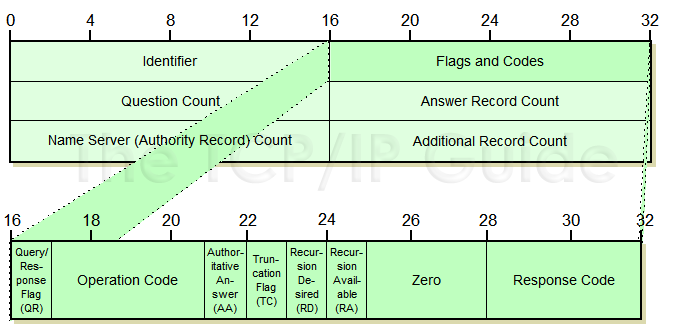

DNS Message Header Format
| Attribute | MMT value | Value | data size | Notes |
|---|---|---|---|---|
| DNS_ID | 2 bytes | Transaction ID | ||
| DNS_QR | MMT_DNS_UNKNOWN | 0 | 1 bits | unknown type of DNS packet |
| MMT_DNS_QUERY | 1 | DNS query packet | ||
| MMT_DNS_REPLY | 2 | DNS reply packet | ||
| DNS_OPCODE | 4 bits | Operation code | ||
| 0 | Operation code = QUERY - standard query | |||
| 1 | Operation code - IQUERY - an inverse query (obsolete in RFC 1035) | |||
| 2 | Operation code - STATUS - A server status request | |||
| 3 | Operation code - (reserved) - Reserved, not used | |||
| 4 | Operation code - NOTIFY - a special message type added by RFC 1996 | |||
| 5 | Operation code - UPDATE - a special message type added by RFC 2136 | |||
| DNS_AA | 1 bit | Authoritative answer flag | ||
| 0 | the response is non-authoritative | |||
| 1 | the response is authoritative | |||
| DNS_TC | 1 bit | Truncation Flag | ||
| 0 | the message was not truncated | |||
| 1 | the message was truncated (>512 bytes) | |||
| DNS_RD | Recursion Desired - the value of this bit is not changed in the response | |||
| 0 | the server receiving the query does not attempt to answer the query recursively | |||
| 1 | the server receiving the query attempt to answer the query recursively (if server supports recursive resolution) | |||
| DNS_RA | Recursion Available | |||
| 0 | the server creating the response does not support recursive queries | |||
| 1 | the server creating the response supports recursive queries | |||
| DNS_Z | 3 bits | Three reserved bits set to zero | ||
| DNS_RCODE | 4 bits | Response code, set 0 in queries | ||
| 0 | No Error - No error occurred | |||
| 1 | Format Error | |||
| 2 | Server Failure | |||
| 3 | Name Error | |||
| 4 | Not Impelemented | |||
| 5 | Refused | |||
| 6 | YX Domain | |||
| 7 | YX RR Set | |||
| 8 | NX RR Set | |||
| 9 | Not Auth | |||
| 10 | Not Zone | |||
| DNS_QDCOUNT | 2 bytes | question count - the number of questions in the question section of the message | ||
| DNS_ANCOUNT | 2 bytes | Answer record count - the number of resource records in the Answer session of the message | ||
| DNS_NSCOUNT | 2 bytes | Authority Record Count - the number of resource records in the Authority session of the message | ||
| DNS_ARCOUNT | 2 bytes | Additional Record count - the number of resource records in the additional session of the message |

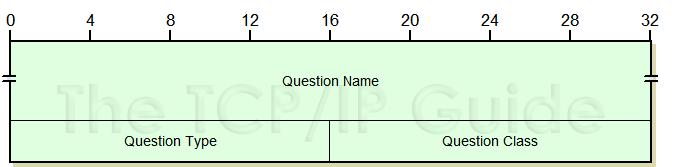

DNS Question Section Format
| Attribute | MMT value | Value | data size | Notes |
|---|---|---|---|---|
| DNS_QNAME | String | Question Name: Contains the object, domain or zone name, encoded using standard DNS name notation | ||
| DNS_QTYPE | 2 bytes | Question Type | ||
| 251 | IXFR - A request for incremental (partial) zone transfer | |||
| 252 | AXFR - A request for a zone transfer | |||
| 253 | MAILB - A request for mailbox-related record | |||
| 254 | MAILB - A request for mail agent resource records | |||
| 255 | * - A request for all request | |||
| DNS_QCLASS | 2 bytes | Question class - the class of the resource record being requested (normaly 1 for Internet “IN”, 255 - any class) see more |

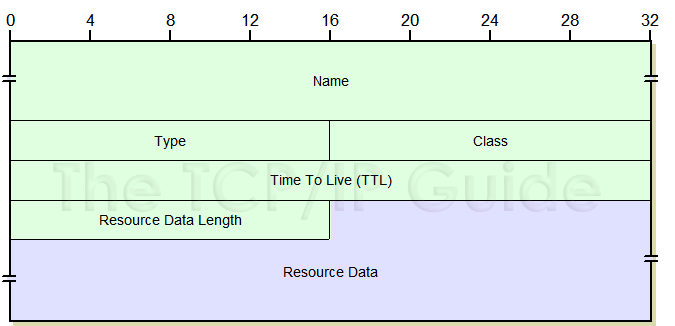

DNS Common resource Record Format
| Attribute | MMT value | Value | data size | Notes |
|---|---|---|---|---|
| NAME | variable | Name - Contains the object, domain, … | ||
| TYPE | 2 bytes | Type - Type a code value specifying the type of resource record | ||
| Class | 2 bytes | Class - The class of the resource record being requested | ||
| TTL | 4 bytes | Time to Live - The number of seconds that the record should be retained in the cache | ||
| RDLength | 2 bytes | Resource Data Length - The size of RData field, in bytes | ||
| RData | variable | Resource Data - The data portion of the resource record |
May need more detail:
DNS Name Notation and Message Compression Technique
More detail can be found from here…
General rule: [size_1]string_size_1[size_2]string_size_2[size_3]string_size_3[last_size=0]
The string is separated by . or @

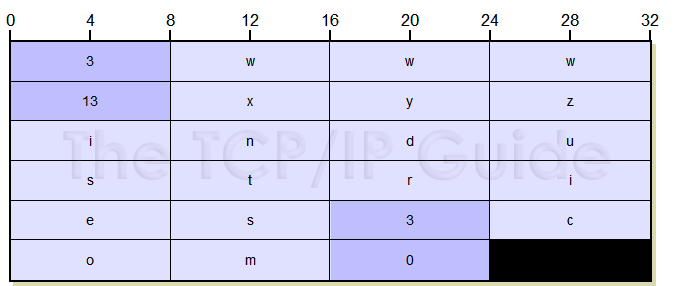

Standard DNS Name Notation
www.xyzindustries.com -> [3] w w w [13] x y z i n d u s t r i e s [3] c o m [0]
**DNS Electronic Mail Address Notation: ** [6] j o h n n y [9] s o m e w h e r e [3] o r g [0]
DNS Message Compression: [4] m a i l [13] x y z i n d u s t r i e s [3] c o m [0]
the second instance, where “mail.xyzindustries.com” shows up in the Name field of the A record, we would instead put two “1” bits, followed by the number 47 encoded in binary. So, this would be the 16-bit binary pattern “11000000 00101111”, or two numeric byte values “192” and “47”. This second instance now takes 2 bytes instead of duplicating the 24 bytes needed for the first instance of the name
Using Message Compression to Avoid Duplication of Part of a Name
“[4] m a i l [pointer-to-byte-19]”.
“[pointer-to-byte-33]”
References
RFC 1035 - DOMAIN NAMES - IMPLEMENTATION AND SPECIFICATION
DNS Message Header and Question Section Format
Created by @luongnv89 on 13 July 2017
